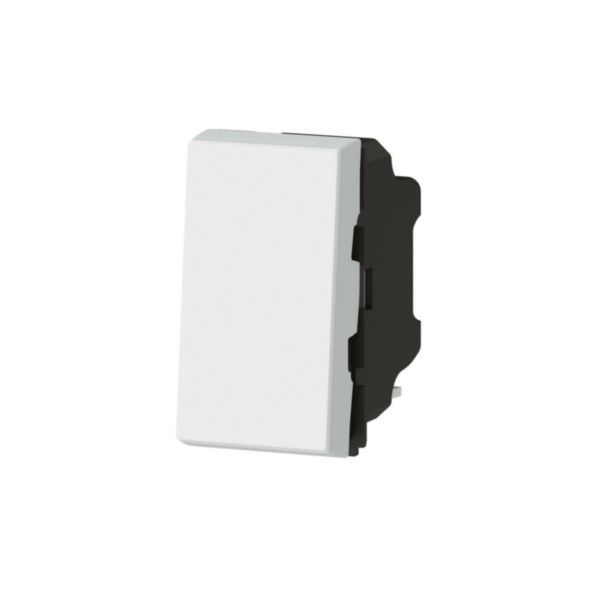

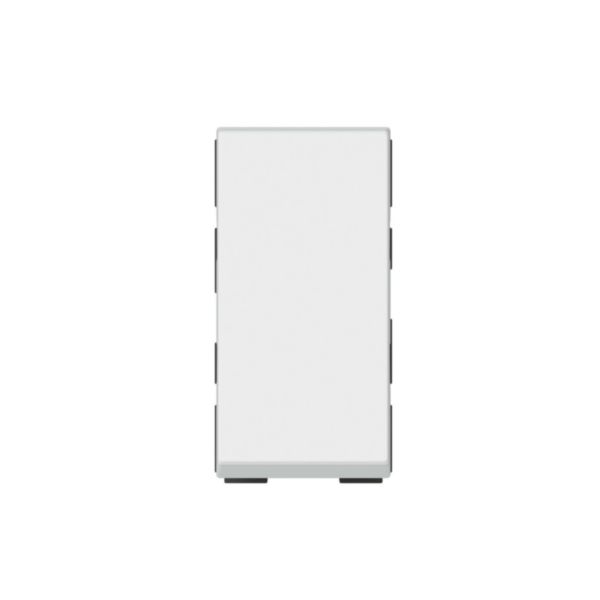

1-way pushbutton + terminal white

Name: 1-way pushbutton + terminal white
SKU: 077034L

LEGRAND

REF. 077034L EAN oznaka. 3414971575349

Primerjaj Μπορείτε να συγκρίνετε μόνο 4 προϊόντα, πρέπει να αφαιρέσετε 1 για να προσθέσετε αυτό

Assembly arrangement	Modular device for domestic switching devices
Model	Single push button
Method of operation	Push button
Number of contacts as normally closed contact	0
Number of contacts as normally open contact	0
Number of contacts as change-over contact	0
Number of revolving contacts	1
Number of rockers	1
Number of modules (module system)	1
Number of poles	1
Nominal voltage	250 V
Rated current	6 A
With lighting	Yes
Monitoring contact	No
Connection type	Push-in clamp
Mounting method	Flush-mounted
Type of fastening	Engage (snap)
Material	Plastic
Material quality	Thermoplastic
Halogen free	Yes
Antimicrobial treatment	No
Surface protection	Untreated
Surface finishing	Glossy

Colour	White
RAL-number (similar)	9003
Transparent	No
Label space/information surface	No
Imprint	None
Suitable for degree of protection (IP)	IP31
degree of impact strength (IK)	IK04
Device width	45 mm
Device height	22.5 mm
Device depth	36.3 mm
Min. depth of built-in installation box	40 mm
Compatible with Apple HomeKit	No
Compatible with Google Assistant	No
Compatible with Amazon Alexa	No
IFTTT support available	No
Built-in depth	24 mm
Operating / setting temperature	-5-35 °C
Storage temperature	-10-70 °C
Frequency	50-60 Hz
Terminal marking indication	Yes
Terminals capacity	2.5-2.5 mm²
Cable nature for connection	Flexible or rigid
Cable section	2.5-2.5 mm²
