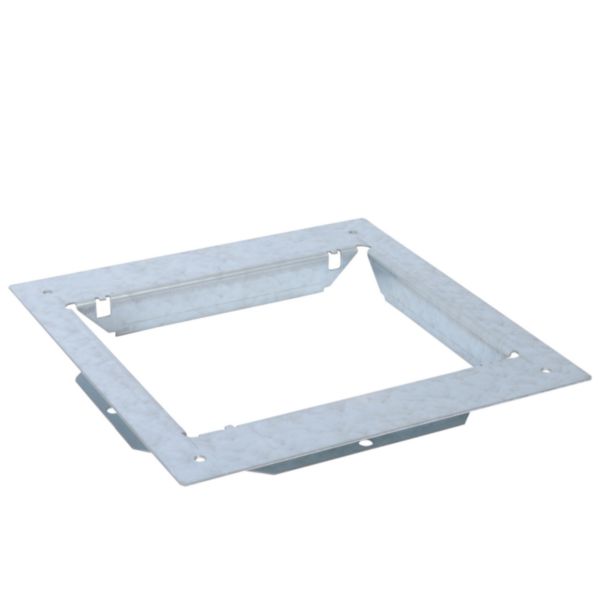

Adaptation plate of the universal backbox for a floor box capacity 12 modules vertical or 18 modules horizontal

LEGRAND

Adaptation plate of the universal backbox for a floor box capacity 12 modules vertical or 18 modules horizontal

REF. 088082 EAN oznaka. 3414970755674
Naloži seznam izdelkov
Μπορείτε να συγκρίνετε μόνο 4 προϊόντα, πρέπει να αφαιρέσετε 1 για να προσθέσετε αυτό
Značilnosti izdelka:
  • Galvanised steel material.
  • Possibility of adding reinforcing rods on its sides through 4 pre - drilled ledges (diameter 10mm)
  • Installation : reuse the four Fixing screws of the upper plate of the universal backbox.
Priporočila / omejitve
  • Indoor use only.

Prednosti izdelka

Prednosti montaže:
  • Floor box modular to compose : matchs with your needs (type of installation, number of modules, finishes), gives time for reflexion, protects the product during the progression of the work site (the installation follows the steps of the site).
Prednosti uporabe:
  • Flush with the concrete screed, the adaptation plate will naturally be covered by the final coating to ensure a perfect integration of the floor box.
Edinstvene značilnosti:
  • Allows a without tool installation of the standard floor box by clipping.

Tehnične značilnosti

Width 330 mm
Height 37 mm
Depth 330 mm
Suitable for subfloor duct countersunk (closed) No
Suitable for subfloor duct overhead closed No
Built-in opening for floor column No
Built-in opening for built-in unit Rectangular
Material side wall Steel
Suitable for placing of sealing No
Decoupling possibility cover from base unit No
Bottom plate No

Dokumentacija

4 Dokumenti
Tehnični list
F03335EN-04.pdf pdf (4.72 Mo)
Tehnični list
F03335FR-04.pdf pdf (4.71 Mo)
Tehnični list
F03334EN-03.pdf pdf (6.96 Mo)
Tehnični list
F03334FR-03.pdf pdf (7.11 Mo)
11 Dokumenti
Tehnična stran v katalogu
ex223001_1143.pdf pdf (0.46 Mo)
Tehnična stran v katalogu
ex223001_1146.pdf pdf (0.48 Mo)
Stran v katalogu
ex223001_1140.pdf pdf (0.12 Mo)
Tehnična stran v katalogu
ex223001_1153.pdf pdf (0.4 Mo)
Tehnična stran v katalogu
ex223001_1144.pdf pdf (0.05 Mo)
Tehnična stran v katalogu
ex223001_1147.pdf pdf (0.47 Mo)
Stran v katalogu
ex223001_1145.pdf pdf (0.12 Mo)
Stran v katalogu
ex223001_1141.pdf pdf (0.1 Mo)
Tehnična stran v katalogu
ex223001_1142.pdf pdf (0.51 Mo)
Tehnična stran v katalogu
ex223001_1154.pdf pdf (0.31 Mo)
Stran v katalogu
ex223001_1152.pdf pdf (0.09 Mo)
10 Dokumenti
BIM datoteka
BIM datoteka
BIM datoteka
BIM datoteka
BIM datoteka
BIM datoteka
BIM datoteka
BIM datoteka
BIM datoteka
3D Autocad
3D_LG-088082.stp ifc (0.35 Mo)
2 Dokumenti
Ooljevarstveni profil
LGRP-00109-V01.01-EN.pdf pdf (0.61 Mo)
Ooljevarstveni profil
LGRP-00108-V01.01-EN.pdf pdf (0.61 Mo)
