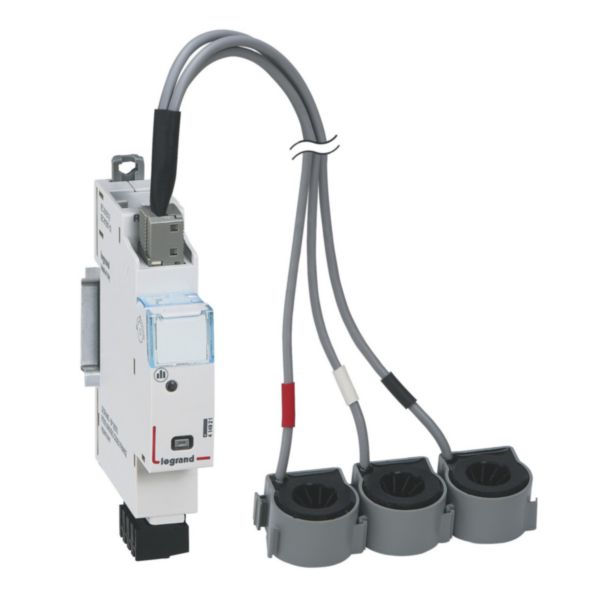

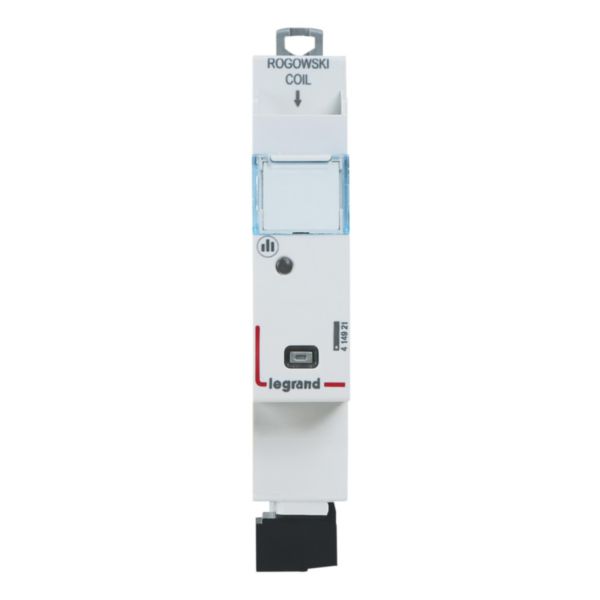

EMS CX3 measure module for 1 three-phase electrical line up to 125A with Rogowski current transformers
EMS CX³
LEGRAND
EMS CX3 measure module for 1 three-phase electrical line up to 125A with Rogowski current transformers
REF. 414921
EAN oznaka.
3414971437685
Deli
Μπορείτε να συγκρίνετε μόνο 4 προϊόντα, πρέπει να αφαιρέσετε 1 για να προσθέσετε αυτό
Tehnične značilnosti
| Bus system KNX | No |
|---|---|
| Bus system KNX-RF (Radio Frequency) | No |
| Bus system radio frequency | No |
| Bus system LON | No |
| Bus system Powernet | No |
| Other bus systems | Other |
| Radio frequency bidirectional | No |
| Model | Direct/transformer |
| Connection type | Direct , Cable |
| Reactive power | Yes |
| S0 impulse interface | None |
| Tariff switch | No |
| Accuracy class | 0.5 |
| Width | 17.8 mm |
| Height | 95.5 mm |
| Depth | 67.6 mm |
| degree of impact strength (IK) | Other |
|---|---|
| Degree of protection (IP) | IP40 |
| Operating / setting temperature | -25-70 °C |
| Storage temperature | -40-70 °C |
| Voltage type | DC |
| Nominal voltage | 10.8-13.2 V |
| Terminal marking indication | Yes |
| Halogen free | Yes |
| Terminals capacity | 0.5-2.5 mm² |
| Label space/information surface | Yes |
| Fitted with USB plug | No |
| Mounting method | DIN rail |
| Addressable | Yes |
| Contains Batteries and/or Accumulator | No |
| Connected object | No |
