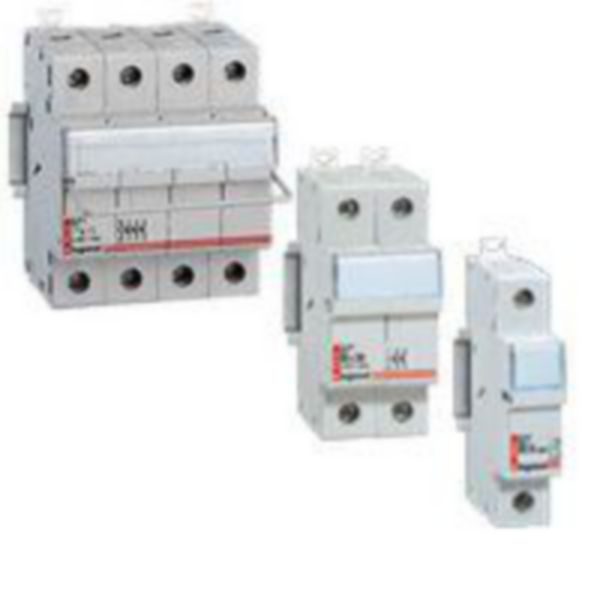

Fuse carrier 3P for industrial cylindrical cartridge fuse 10 x 38 mm

LEGRAND

Fuse carrier 3P for industrial cylindrical cartridge fuse 10 x 38 mm

REF. 005838 EAN oznaka. 3245060058388
Naloži seznam izdelkov
Μπορείτε να συγκρίνετε μόνο 4 προϊόντα, πρέπει να αφαιρέσετε 1 για να προσθέσετε αυτό
Značilnosti izdelka:
  • With insulated carrier class II, padlockable with Accessory 005799
  • Terminals capacity 1 x 25 mm² maxi, IP 2X, screw head PZ2
  • Conforms to IEC standards 60269 - 1, 60269 - 2, 60269 - 2 - 1 and standard NF C 63 - 210
  • Possibilty to signal indicator blown fuse with accessory 005790
  • Fuse not supplied
Priporočila / omejitve
  • This product should be installed in compliance with installation rules, preferably by a qualified electrician. Incorrect installation and/or incorrect use can lead to risk of electric shock or fire.Before carrying out the installation, read the instructions and take account of the product's specific mounting location.Do not open up, dismantle, alter or modify the device except where specifically required to do so by the instructions. All Legrand products must be opened and repaired exclusively by personnel trained and approved by Legrand. Any unauthorised opening or repair completely cancels all liabilities and the rights to replacement and guarantees.Use only Legrand brand accessories.

Prednosti izdelka

Prednosti montaže:
  • Fitted with two DIN rail clamps, one top side and one bottom side, allowing an independent removal of this product when the prong busbar supplying the row is still in place.
Prednosti uporabe:
  • Fitted with a label holder allowing a clear, visible and convenient identification of the circuit.

Tehnične značilnosti

Nominal voltage 500 V
Mounting method DIN rail
For fuse size 10x38 mm
Number of poles 3
Concurrently switching neutral conductor No
Degree of protection (IP) IP20

Dokumentacija

2 Dokumenti
Tehnični list
FA222CEN_03.pdf pdf (0.8 Mo)
Tehnični list
FA222C_03.pdf pdf (0.76 Mo)
1 Dokumenti
Stran v katalogu
ex223001_0092.pdf pdf (0.23 Mo)
1 Dokumenti
3D Autocad
005838.dwg dwg (0.08 Mo)
1 Dokumenti
Ooljevarstveni profil
LGRP-2015-149-V1-EN.pdf pdf (0.62 Mo)
