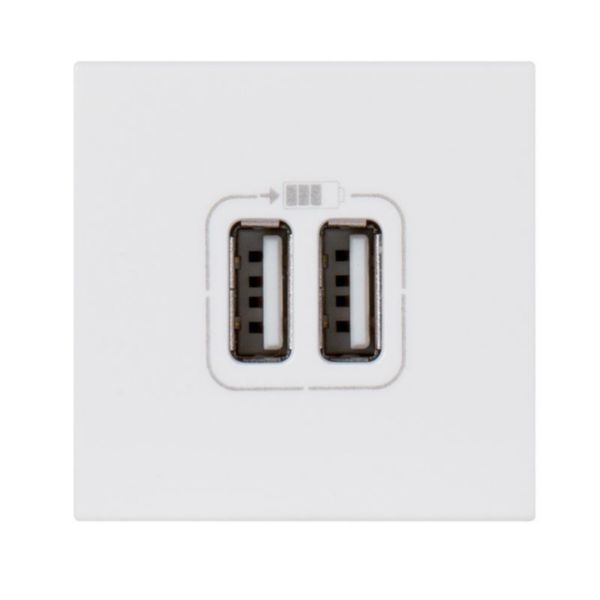

Mosaic™ - Double USB socket - 5V - 1500 mA - 2 modules - White

Name: Mosaic™ - Double USB socket - 5V - 1500 mA - 2 modules - White
SKU: 077594

Mosaic™ LEGRAND

REF. 077594 EAN oznaka. 3245060775940

Mosaic™ Programme mechanisms - USB charging sockets USB charging sockets - For recharging portable devices - White

Primerjaj Μπορείτε να συγκρίνετε μόνο 4 προϊόντα, πρέπει να αφαιρέσετε 1 για να προσθέσετε αυτό

Mosaic™ Programme mechanisms - USB charging sockets
USB charging sockets
- For recharging portable devices
- White

Mosaic™ Programme mechanisms - USB charging sockets
USB charging sockets - For recharging portable devices - Conform to IEC 62684-2011-01 - Consumption in passive mode 0.1 W - 2P+E tap-off connection via 2.5 mm2 screw terminals - Supplied cordlessDouble USB sockets - 5V- 2400 mA - (1500 mA until 1-07-2016) - For telephones, smartphones, MP3/MP4 players and fast-charging tablet PC - For telephones, smartphones, MP3/MP4 players and fast-charging tablet PC - For telephones, smartphones, MP3/MP4 players and fast-charging tablet PC - For telephones, smartphones, MP3/MP4 players and fast-charging tablet PC - For telephones, smartphones, MP3/MP4 players and fast-charging tablet PC - For telephones, smartphones, MP3/MP4 players and fast-charging tablet PC - 2 modules - White - Can be installed in receptacles for floor sockets

Model	Other
Number of ports USB-A	2
Number of ports USB-C	0
Operating voltage	100-240 V
Frequency	50-60 Hz
Max. output current	3000 mA
Output voltage	5-5 V
Power consumption	0.068 W
Connection type	Screwed terminal
Mounting method	Flush-mounted
Colour	White
RAL-number	9003
Device width	45 mm
Device height	45 mm
Device depth	42 mm
Min. depth of built-in installation box	40 mm
Suitable for degree of protection (IP)	IP40
degree of impact strength (IK)	IK04

Antimicrobial treatment	No
Wireless	No
Built-in depth	33.5 mm
Operating / setting temperature	0-40 °C
Storage temperature	-20-70 °C
Voltage type	AC
Power Delivery	No
USB Output Power	15
Supply current	0.5-0.5 A
Mandatory neutral	Yes
Terminal marking indication	Yes
Stress test conformity (1000V)	No
Halogen free	Yes
Number of terminals	2
Terminals capacity	1.5-2.5 mm²
Cable nature for connection	Flexible or rigid
Cable section	1.5-2.5 mm²
