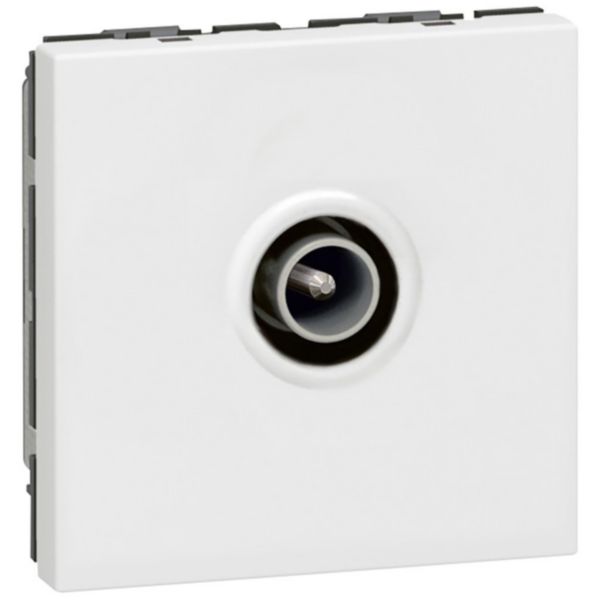

Mosaic™ - TV socket - single - male Ø9.52 mm - 2 modules - white

Name: Mosaic™ - TV socket - single - male Ø9.52 mm - 2 modules - white
SKU: 078782

Mosaic™ LEGRAND

REF. 078782 EAN oznaka. 3245060787820

Primerjaj Μπορείτε να συγκρίνετε μόνο 4 προϊόντα, πρέπει να αφαιρέσετε 1 για να προσθέσετε αυτό

Mosaic™ Programm e mechanisms - television sockets - For DVBT, Cablecast and satellite installation - UHD TV compatible - Class A shielded star sockets LTE Ready (4G protected) Recomm ended coaxial cable : 17 VATC - Star cabling (1 socket = 1 cable to antenna, splitter or multiswitch) Visual checking of the connection - Meet EN 50083 - 4 and EN 50083 - 2 European directive - TV : male connector (Ø9.5 mm ) - 5 - 68 / 120 - 862 MHz - R : female connector (Ø9.5 mm ) - 87.5 - 108 MHz - SAT : "F type" connector - 950 - 2400 MHz
Single TV star sockets - Low attenuation : 1 dB TV 9.5 mm male - White - 2 modules - Can be installed in receptacles for floor sockets

Model	End socket
Type of socket outlet	TV
DAB+	No
Mounting method	Module frame
Number of modules (module system)	2
Cover	Central cover plate
Tap loss at 860 MHz	1 dB
Tap loss at 2150 MHz	1.5 dB
Number of outlets	1
Suitable for cable modem	No
Suitable for remote power supply	Yes
Type of fastening	Snap mounting (engagement)
Colour	White
RAL-number (similar)	9003

Surface protection	Untreated
Surface finishing	Glossy
Material	Plastic
Material quality	Thermoplastic
Halogen free	Yes
Antimicrobial treatment	No
Degree of protection (IP)	IP21
degree of impact strength (IK)	IK03
Device width	45 mm
Device height	45 mm
Device depth	32.5 mm
Min. depth of built-in installation box	23.5 mm
Operating / setting temperature	-5-35 °C
Storage temperature	-10-70 °C
