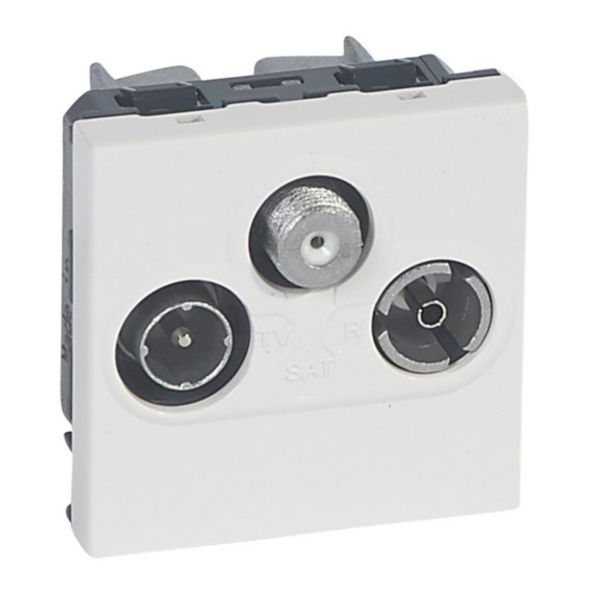

Mosaic™ - TV socket - TV/R/SAT - screened - insulated - 2 modules - alu

Name: Mosaic™ - TV socket - TV/R/SAT - screened - insulated - 2 modules - alu
SKU: 079296

Mosaic™ LEGRAND

REF. 079296 EAN oznaka. 3245060792961

Primerjaj Μπορείτε να συγκρίνετε μόνο 4 προϊόντα, πρέπει να αφαιρέσετε 1 για να προσθέσετε αυτό

Mosaic™ Programm e mechanisms - television sockets - For DVBT, Cablecast and satellite installation - UHD TV compatible - Class A shielded star sockets LTE Ready (4G protected) Recomm ended coaxial cable : 17 VATC - Star cabling (1 socket = 1 cable to antenna, splitter or multiswitch) Visual checking of the connection - Meet EN 50083 - 4 and EN 50083 - 2 European directive - TV : male connector (Ø9.5 mm ) - 5 - 68 / 120 - 862 MHz - R : female connector (Ø9.5 mm ) - 87.5 - 108 MHz - SAT : "F type" connector - 950 - 2400 MHz
Multi TV star sockets TV - R - SAT - 2 modules - Low attenuation : 1.5 dB - Alu - Can be installed in receptacles for floor sockets

Model	End socket
Type of socket outlet	TV/RD/SAT
DAB+	Yes
Mounting method	Module frame
Number of modules (module system)	2
Cover	Central cover plate
Tap loss at 860 MHz	1.5 dB
Tap loss at 2150 MHz	2 dB
Number of outlets	3
Suitable for cable modem	No
Suitable for remote power supply	Yes
Radio frequency band	87.5-240 MHz
SAT frequency band	950-2400 MHz

Type of fastening	Snap mounting (engagement)
Colour	Aluminium
Halogen free	Yes
Antimicrobial treatment	No
Degree of protection (IP)	IP20
degree of impact strength (IK)	IK04
Device width	45 mm
Device height	45 mm
Device depth	33 mm
Min. depth of built-in installation box	40 mm
Operating / setting temperature	-5-35 °C
Storage temperature	-10-70 °C
