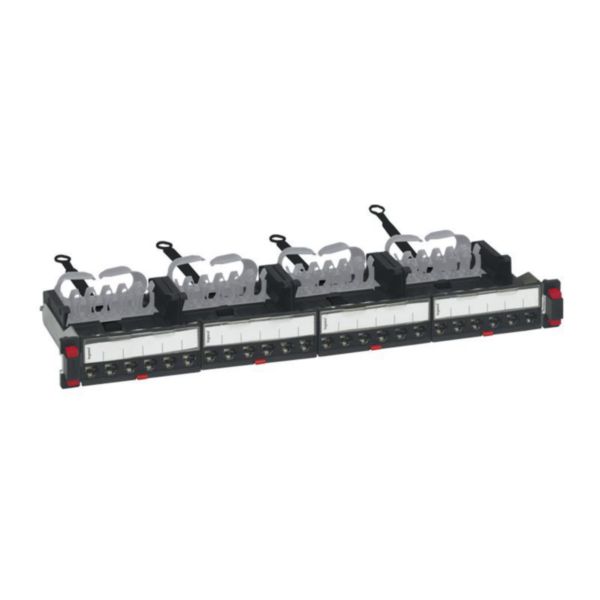

Patch panel 19 inch - equipped with 24 RJ45 Category 6A STP
LCS³
LEGRAND
Patch panel 19 inch - equipped with 24 RJ45 Category 6A STP
REF. 033772
EAN oznaka.
3414970870704
This 19 inch patch panel is ready to use with 24 RJ45 and also a new generation quick-fix mechanism for automatic screwless mounting on the cabinets uprights. The automatic removal of each cassette is possible using a push button.
Deli
Μπορείτε να συγκρίνετε μόνο 4 προϊόντα, πρέπει να αφαιρέσετε 1 για να προσθέσετε αυτό
Tehnične značilnosti
| Number of buses/couplings | 24 |
|---|---|
| Suitable for number of connectors | 24 |
| Type of connector | RJ45 8(8) |
| Screened | Yes |
| Category | 6A (IEC) |
| Connection type | Insulation displacement connector |
| Number of height units | 1 |
| Colour | Black |
| RAL-number | 9017 |
| Mounting method | 482.6 mm (19 inch) mounting |
| Height | 43.85 mm |
| Width | 482.5 mm |
|---|---|
| Depth | 321.7 mm |
| degree of impact strength (IK) | IK03 |
| Operating / setting temperature | -25-70 °C |
| Storage temperature | -40-70 °C |
| Terminal marking indication | Yes |
| Prewired | No |
| Cable nature for connection | Flexible or rigid |
| Label space/information surface | Yes |
| Cable support | With zigzag |
