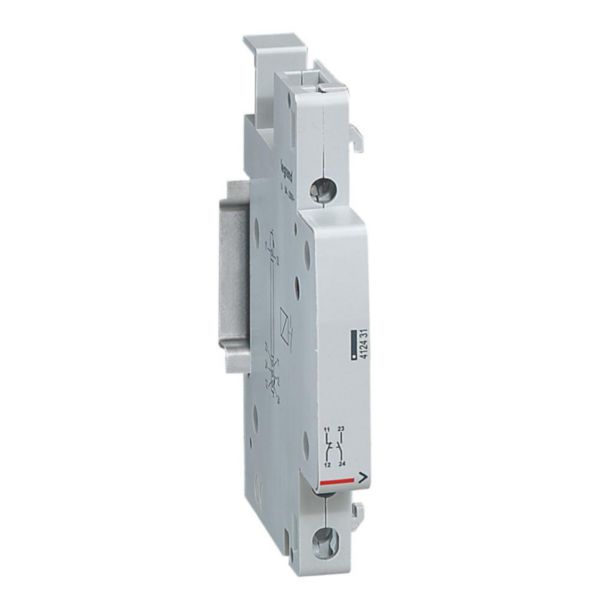

Name: Signalling auxiliary NO + NC for Legrand 40A and 63A contactor CX³ - 250V~ - 5A
SKU: 412431

Signalling auxiliary NO + NC for Legrand 40A and 63A contactor CX³ - 250V~ - 5A

CX³ LEGRAND

Signalling auxiliary NO + NC for Legrand 40A and 63A contactor CX³ - 250V~ - 5A

REF. 412431 EAN oznaka. 3245064124317

Primerjaj Μπορείτε να συγκρίνετε μόνο 4 προϊόντα, πρέπει να αφαιρέσετε 1 για να προσθέσετε αυτό

Easy mechanical association on the left side of the contactor. No tools required.
Maximum of 1 auxiliairy per contactor
Very compact device : 0,5 module wide

This product should be installed in compliance with installation rules, preferably by a qualified electrician. Incorrect installation and/or incorrect use can lead to risk of electric shock or fire. Before carrying out the installation, read the instructions and take account of the product's specific mounting location. Do not open up, dismantle, alter or modify the device except where specifically required to do so by the instructions. All Legrand products must be opened and repaired exclusively by personnel trained and approved by Legrand. Any unauthorised opening or repair completely cancels all liabilities and the rights to replacement and guarantees. Use only Legrand brand accessories.

Device fitting	Auxiliary switch/relay
Function	Signalling switch
Width in number of modular spacings	0.5
Number of contacts as normally open contact	1
Number of contacts as normally closed contact	1
Number of contacts as change-over contact	0
Number of fault-signal switches	0
Rated switch current	5 A

Rated voltage	250 V
Voltage type	AC
With auto test for earth leakage function	No
Suitable for max. number of poles main contact unit (total)	4
Suitable for max. current main contact unit	63 A
Width	9 mm
Height	83 mm
Depth	66 mm

Signalling auxiliary NO + NC for Legrand 40A and 63A contactor CX³ - 250V~ - 5A
