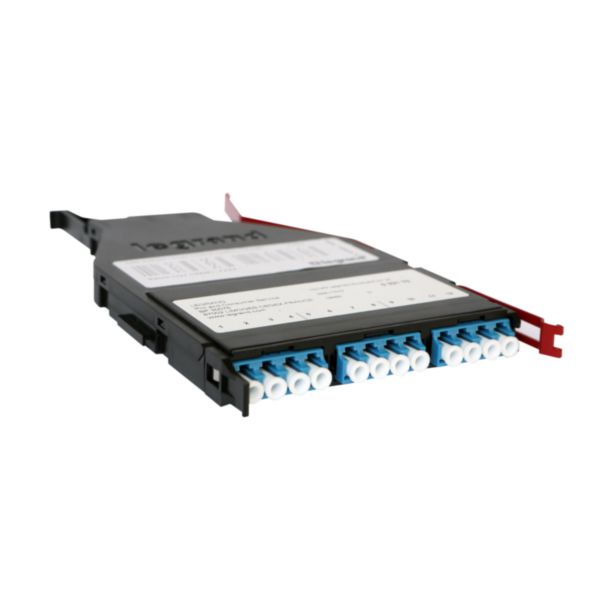

HD slim modular cassette preterminated 12 LC to MTP singlemode OS2 universal polarity

Name: HD slim modular cassette preterminated 12 LC to MTP singlemode OS2 universal polarity
SKU: 032170

LCS³ LEGRAND

HD slim modular cassette preterminated 12 LC to MTP singlemode OS2 universal polarity

REF. 032170 EAN oznaka. 3414971929159

This high density preterminated slim cassette transforms parallel links (MTP/MPO UHD connector) into duplex connections. Can be installed into HD modular panels (ref. 032175, 032176 and 032177) and also in the zero-U kit (ref. 032103).

Naloži seznam izdelkov

Primerjaj Μπορείτε να συγκρίνετε μόνο 4 προϊόντα, πρέπει να αφαιρέσετε 1 για να προσθέσετε αυτό

Splošni opis:
Dokumentacija
Navzkrižna prodaja

Splošni opis:

This high density preterminated slim cassette transforms parallel links (MTP/MPO UHD connector) into duplex connections. Can be installed into HD modular panels (ref. 032175, 032176 and 032177) and also in the zero-U kit (ref. 032103).

Značilnosti izdelka:

Already equipped with preterminated fibres (12 fibre optic OS2 singlemode 50/125 µm), directly connectible to female MTP connector with 12 fibres.
Sliding cassette with push button for fast extraction of the cassette from the Front. Extraction from the rear also possible.
High performance MTP cassette with maximal insertion loss 0,5dB.
Compatible with MPO

Priporočila / omejitve

Slim cassettes have to be mounted with their support (ref. 032138). That support accepts up to 2 cassettes (ref. 032168, 032169 and 032170) or 2 blank panels (ref. 032139), or 1 cassette and 1 blank panel.

Prednosti izdelka

Prednosti montaže:

Fast automatic extraction at the front and rear. Easy mix of singlemode and multimode on the same support.

Prednosti uporabe:

Fast automatic extraction at the front, easy to use, giving better accessibility to the patchcords when move, adds & changes. Extraction from the rear also possible. Each cassette can be separatly extrated.

Tehnične značilnosti

Category	OS2
Connection type front side	LC-Duplex
Number of connectors front side	12
Connection type backside	MTP-M
Number of connectors rear side	1
Colour	Black
Crossed	Yes
Width	100 mm

Height	13.6 mm
Depth	194 mm
Operating / setting temperature	-10-60 °C
Storage temperature	-10-60 °C
RAL-number	9017
Halogen free	Yes
Label space/information surface	No
