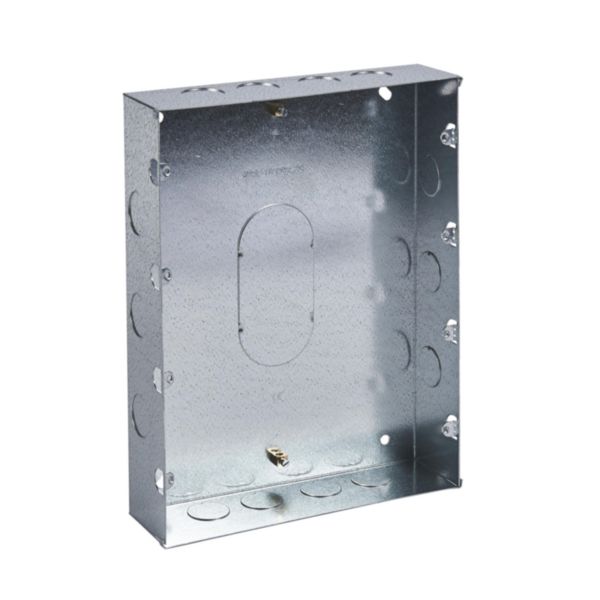

Synergy™
LEGRAND
REF. 081855
EAN.
3245060818555
Share
Μπορείτε να συγκρίνετε μόνο 4 προϊόντα, πρέπει να αφαιρέσετε 1 για να προσθέσετε αυτό
Τεχνικά χαρακτηριστικά
| Mounting method | Facing brickwork |
|---|---|
| Shape | Rectangular |
| Construction type | Other |
| Model | Other |
| Provided with revolving ring | No |
| Equipped with | None |
| Width | 194 mm |
| Depth | 54-54 mm |
| Mounting switching equipment | Screwing |
| With screws | No |
| Housing feed-through by break-out opening | Yes |
| Housing feed-through by seal membrane | Yes |
| Housing feed-through by nozzle | No |
| Housing feed-through by step membrane | No |
| For tube diameter | 25 mm |
| Pipe locking | No |
| Pipe locking optional | No |
| Inlet from the rear | No |
| Number of inlets | 14 |
| Material | Steel |
|---|---|
| Halogen free | Yes |
| Surface protection | Continuously galvanized |
| Colour | Grey |
| Degree of protection (IP) | IP20 |
| Cover model | None |
| Cover attachment | Other |
| Sealable | No |
| With screening | No |
| Air tight | No |
| Number of poles of the clamp | 2 |
| Clamp position fixed | Yes |
| Luminaire hook mounting | No |
| Nozzle | None |
| Special application | None |
| Vertical fixing center distance | 213.6-226.4 mm |
| Horizontal fixing center distance | 146.8-153.2 mm |
| Cable support | Not applicable |
