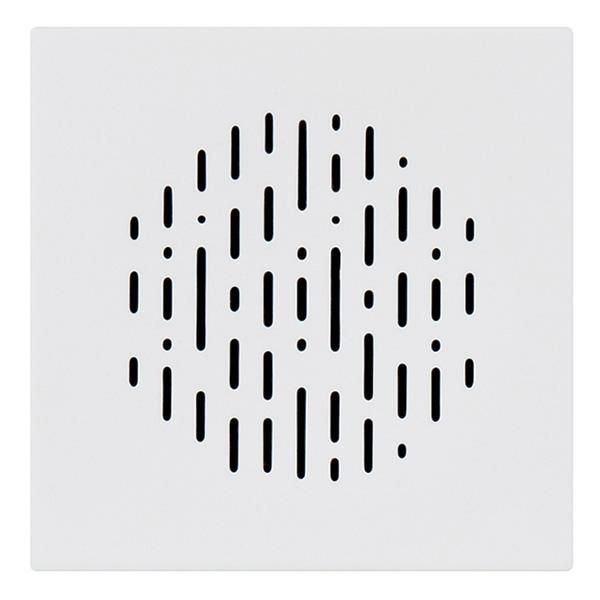

Arteor™
LEGRAND
REF. 572207
EAN.
3245065722079
Share
Μπορείτε να συγκρίνετε μόνο 4 προϊόντα, πρέπει να αφαιρέσετε 1 για να προσθέσετε αυτό
Τεχνικά χαρακτηριστικά
| Nominal voltage | 230 V |
|---|---|
| Type of current | AC |
| Degree of protection (IP) | IP41 |
| Loudness | 73 dB |
| Housing material | Plastic |
| Housing material quality | Other |
| Surface protection housing | Untreated |
| Housing colour | White |
| Type of tone | Continuous tone |
| Mounting method | Built-in |
| Built-in transformer | Yes |
| Width | 45 mm |
| Height | 45 mm |
| Depth | 41 mm |
|---|---|
| Built-in depth | 32 mm |
| degree of impact strength (IK) | IK05 |
| Operating / setting temperature | -5-35 °C |
| Storage temperature | -10-70 °C |
| RAL-number | 9003 |
| Halogen free | Yes |
| Antimicrobial treatment | No |
| Connection type | Screwed terminal |
| Terminals capacity | 1.5-1.5 mm² |
| Cable nature for connection | Flexible or rigid |
| Cable section | 1.5-1.5 mm² |
| Loudness setting | No |
