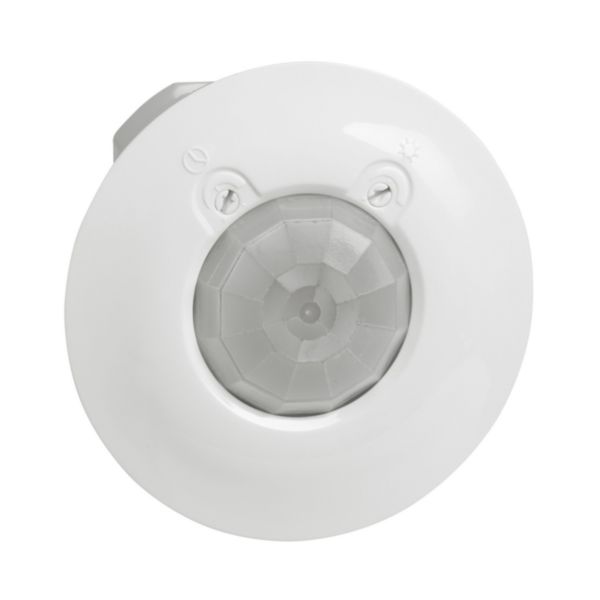

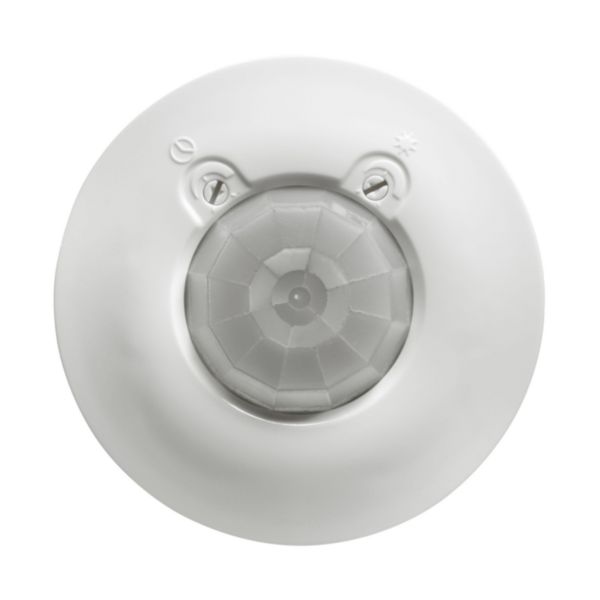

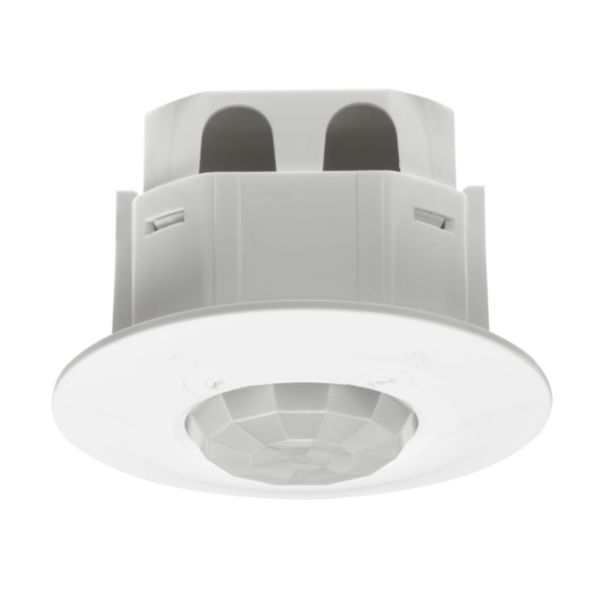

Détecteur de mouvement autonome ECO1 3 fils avec neutre IP41 pour fixation au plafond dans emballage traditionnel
Mosaic™
LEGRAND
Détecteur de mouvement autonome ECO1 3 fils avec neutre IP41 pour fixation au plafond dans emballage traditionnel
REF. 048941
EAN.
3414970595195
Détecteur autonome de mouvement ECO1 pour lieux de passage sans luminosité naturelle
Share
Μπορείτε να συγκρίνετε μόνο 4 προϊόντα, πρέπει να αφαιρέσετε 1 για να προσθέσετε αυτό
Τεχνικά χαρακτηριστικά
| Model | Presence detector |
|---|---|
| Sensor type | Passive infrared |
| With DALI interface | No |
| Constant light control | Yes |
| Forced switch off | Yes |
| Animal zone | No |
| Creep-under protection | Yes |
| Background monitoring | No |
| Networkable | No |
| Optimum mounting height | 2.5 m |
| Max. reach sideways | 8 m |
| Max. reach frontally | 8 m |
| Diameter reach on floor | 8 m |
| Suitable for wireless transmission | Yes |
| Remote operation | Yes |
| Supplied remote control | No |
| Response value sensitivity adjustable | Yes |
| Response value luminosity adjustable | Yes |
| Teach-function for response value luminosity | Yes |
| Dim function with dimmer basic element | Yes |
| Mounting method | Flush-mounted |
| Material | Plastic |
| Material quality | Thermoplastic |
| Halogen free | Yes |
| Surface protection | Other |
|---|---|
| Surface finishing | Glossy |
| Antimicrobial treatment | No |
| Colour | White |
| RAL-number (similar) | 9003 |
| Transparent | No |
| Degree of protection (IP) | IP41 |
| Frequency | 50-60 Hz |
| Nominal voltage | 230-230 V |
| Min. switch-on time | 10 s |
| Max. duty cycle | 10 min |
| Detection angle horizontal | 360-360 ° |
| Response value luminosity | 10-1275 lx |
| Temperature | -5-45 °C |
| Number of switching zones | 2 |
| With alarm function | No |
| With acoustic sensor | No |
| With connection cable | No |
| Connection cable length | 0 mm |
| Compatible with Apple HomeKit | No |
| Compatible with Google Assistant | No |
| Compatible with Amazon Alexa | No |
| IFTTT support available | No |
