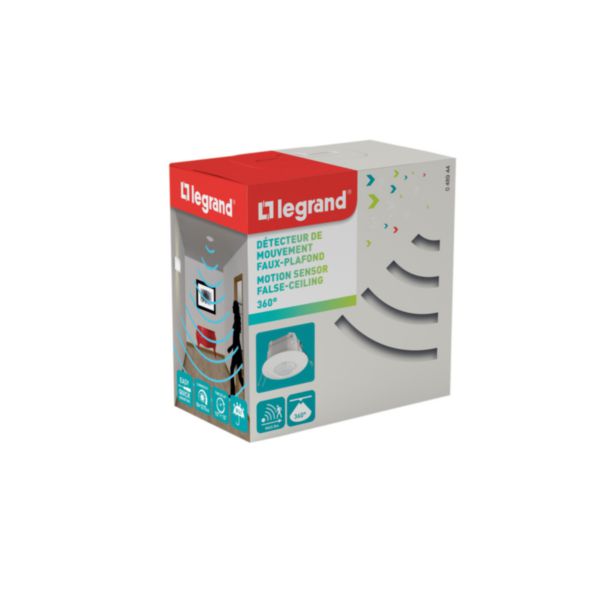

Détecteur de mouvement infrarouge pour fixation plafond - 360° sur 8 m
LEGRAND
Détecteur de mouvement infrarouge pour fixation plafond - 360° sur 8 m
REF. 048944
EAN.
3414970630322
Permet la commande automatique d’une source lumineuse par détection de mouvement dans sa zone de surveillance.
Share
Μπορείτε να συγκρίνετε μόνο 4 προϊόντα, πρέπει να αφαιρέσετε 1 για να προσθέσετε αυτό
Τεχνικά χαρακτηριστικά
| Model | Movement sensor |
|---|---|
| Sensor type | Passive infrared |
| With DALI interface | No |
| Constant light control | Yes |
| HVAC-control | No |
| Forced switch off | No |
| Animal zone | No |
| Creep-under protection | No |
| Background monitoring | No |
| Networkable | No |
| Optimum mounting height | 2.5 m |
| Staircase light controller | Yes |
| Bridging switch | No |
| Max. reach sideways | 4 m |
| Max. reach frontally | 4 m |
| Diameter reach on floor | 8 m |
| Suitable for wireless transmission | No |
| Remote operation | No |
| Supplied remote control | No |
| Response value sensitivity adjustable | Yes |
| Response value luminosity adjustable | Yes |
| With signal unit | No |
| Teach-function for response value luminosity | No |
| Dim function with dimmer basic element | No |
| Mounting method | Flush-mounted |
| Material | Plastic |
| Material quality | Thermoplastic |
| Halogen free | Yes |
| Surface protection | Untreated |
| Surface finishing | Glossy |
| Antimicrobial treatment | No |
| Colour | White |
| RAL-number (similar) | 9006 |
| Transparent | No |
| Degree of protection (IP) | IP41 |
| degree of impact strength (IK) | IK04 |
| Voltage type | AC |
|---|---|
| Frequency | 50-60 Hz |
| Nominal voltage | 240-240 V |
| Min. switch-on time | 10 s |
| Max. duty cycle | 10 min |
| Detection angle horizontal | 360-360 ° |
| Pivoting range sensor, horizontal | 0-0 ° |
| Pivoting range sensor, vertical | 0-0 ° |
| Response value luminosity | 10-1275 lx |
| Suitable for C-load | No |
| Temperature | -5-35 °C |
| Number of switching zones | 1 |
| Substation input | No |
| With alarm function | No |
| With acoustic sensor | No |
| Width | 87 mm |
| Height | 87 mm |
| Depth | 50.5 mm |
| Built-in depth | 37 mm |
| With connection cable | No |
| Connection cable length | 0 mm |
| Compatible with Apple HomeKit | No |
| Compatible with Google Assistant | No |
| Compatible with Amazon Alexa | No |
| IFTTT support available | No |
| Operating / setting temperature | -10-35 °C |
| Storage temperature | -20-70 °C |
| Standby consumption | 3.1 mA |
| Mandatory neutral | Yes |
| Terminal marking indication | Yes |
| Terminals capacity | 2.5-2.5 mm² |
| Label space/information surface | No |
| Tube diameter for wall mounted product | 65-65 mm |
| Maximum Input cable diameter | 2.5 mm |
| Auto switch | No |
