Gaine multifonction verticale pour coffrets étanches Plexo³ 2 rangées
Plexo³
LEGRAND
Gaine multifonction verticale pour coffrets étanches Plexo³ 2 rangées
REF. 001917
EAN.
3245060019174

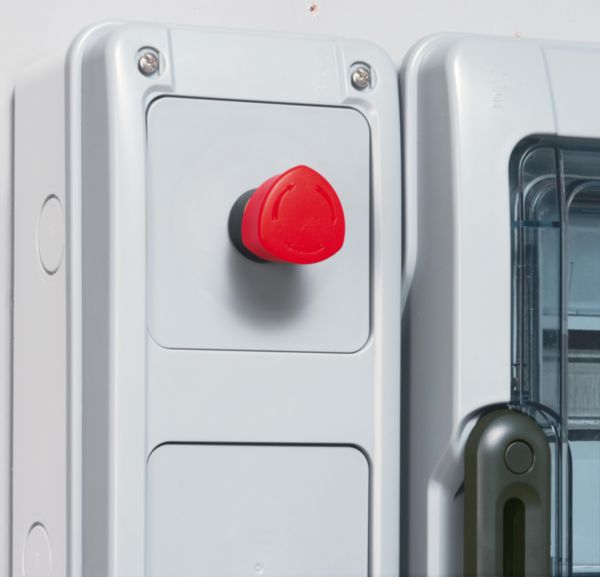

Plexo³, gaine multifonction à associer à un coffret Plexo³, pour montage de commande d'appareillage ou industrielle
Share
Μπορείτε να συγκρίνετε μόνο 4 προϊόντα, πρέπει να αφαιρέσετε 1 για να προσθέσετε αυτό
Τεχνικά χαρακτηριστικά
| Mounting method | Surface mounted |
|---|---|
| number of rows | 3 |
| Width in number of modular spacings | 0 |
| Type of covering | Cover |
| Cover model | With notch |
| Transparent cover/door | No |
| Signal passing door | Yes |
| With lock | No |
| Type of closure | Other |
| Housing material | Plastic |
| Built-in depth | 119 mm |
| Built-in height | 428 mm |
| Built-in width | 133 mm |
| Inner depth | 48.5 mm |
| Earthing terminal block | No |
| Neutral terminal block | No |
| DIN-rail | No |
|---|---|
| With mounting plate | No |
| Extension possible | Yes |
| EMC-version | No |
| Colour | Grey |
| RAL-number | 7046 |
| Degree of protection (IP) | IP65 |
| Height | 432 mm |
| Width | 137 mm |
| Depth | 123 mm |
| degree of impact strength (IK) | IK09 |
| Operating / setting temperature | -25-40 °C |
| Storage temperature | -25-55 °C |
| Halogen free | No |
| Fitted with rainproof plate protection | No |
