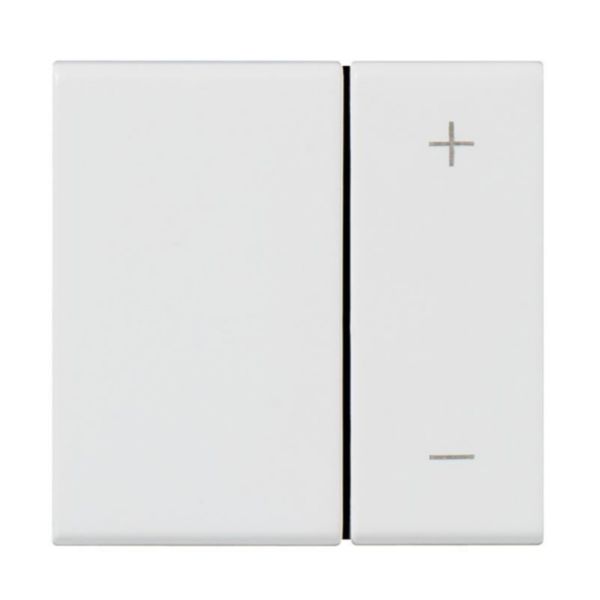

Interrupteur variateur pour ballast 1V à 10V Mosaic 2 modules avec neutre - blanc
Mosaic™
LEGRAND
Interrupteur variateur pour ballast 1V à 10V Mosaic 2 modules avec neutre - blanc
REF. 078404
EAN.
3245060784041
Mosaic, un variateur répondant aux tendances actuelles des bâtiments à compléter d'une plaque de finition et à poser sur tous types de supports
Share
Μπορείτε να συγκρίνετε μόνο 4 προϊόντα, πρέπει να αφαιρέσετε 1 για να προσθέσετε αυτό
Τεχνικά χαρακτηριστικά
| Assembly arrangement | Modular device for domestic switching devices |
|---|---|
| Number of modules (module system) | 2 |
| App control via Bluetooth | No |
| Serial dimmer | No |
| Type of load | Other |
| Substation input | Yes |
| Light value memory | No |
| Applicable with button | Yes |
| Applicable with movement sensor | No |
| Applicable with presence indicator | No |
| Applicable with time switch/timer | No |
| Applicable with transmission button | No |
| Applicable with infrared button | No |
| Mounting method | Module frame |
| Type of fastening | Snapper mounting |
| Material | Plastic |
| Material quality | Thermoplastic |
| Halogen free | Yes |
| Surface protection | Lacquered |
| Surface finishing | Glossy |
| Colour | White |
| RAL-number (similar) | 9003 |
| Transparent | No |
|---|---|
| Suitable for degree of protection (IP) | IP40 |
| degree of impact strength (IK) | IK02 |
| Nominal voltage | 240-240 V |
| Frequency | 47-63 Hz |
| Control voltage | 90-254 V |
| Nominal power resistive load | 20-600 W |
| Connection type | Screwed terminal |
| Cable section | 2.5-2.5 mm² |
| Device width | 45 mm |
| Device height | 45 mm |
| Device depth | 33 mm |
| Compatible with Apple HomeKit | No |
| Compatible with Google Assistant | No |
| Compatible with Amazon Alexa | No |
| IFTTT support available | No |
| Built-in depth | 33 mm |
| Operating / setting temperature | -5-35 °C |
| Storage temperature | -10-70 °C |
| Voltage type | AC |
| Mandatory neutral | Yes |
| Stress test conformity (1000V) | No |
