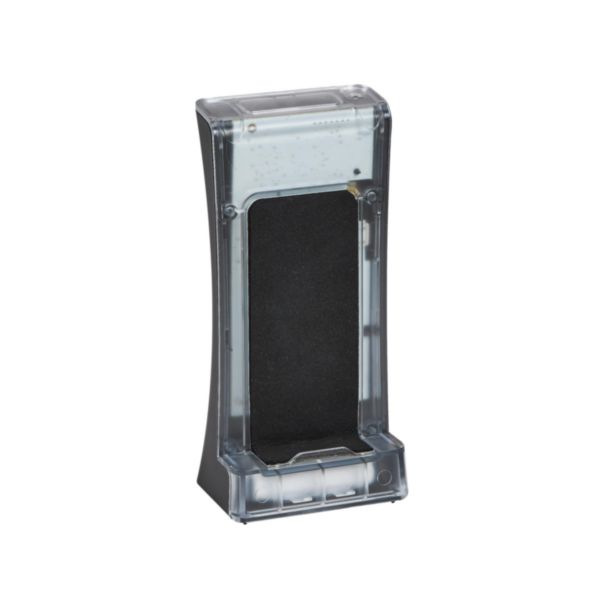

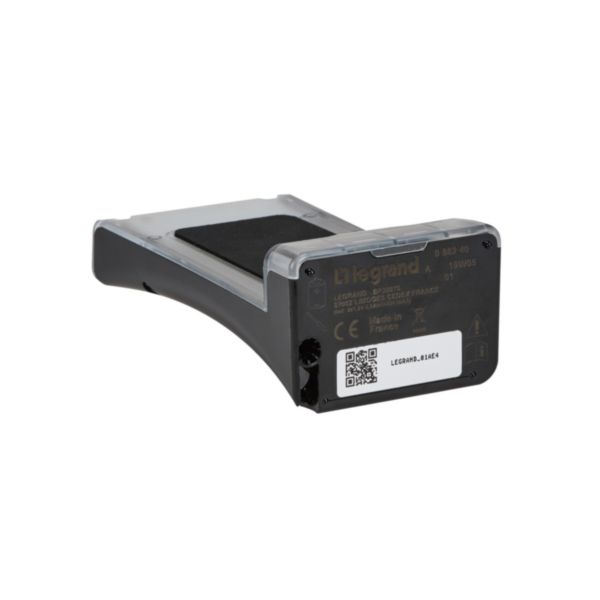

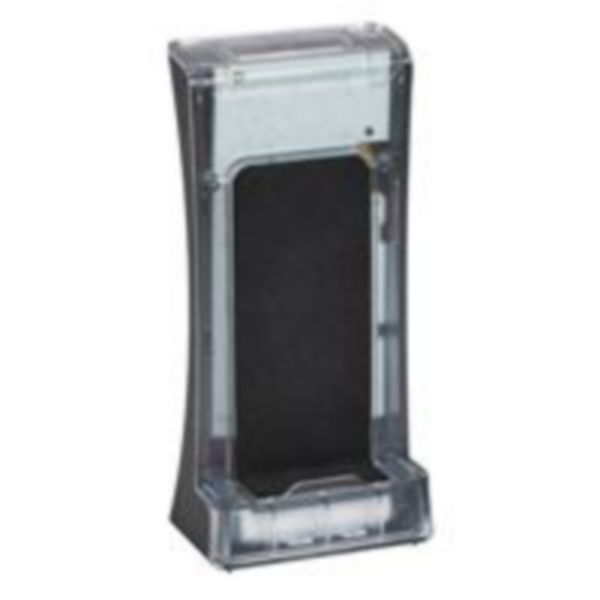

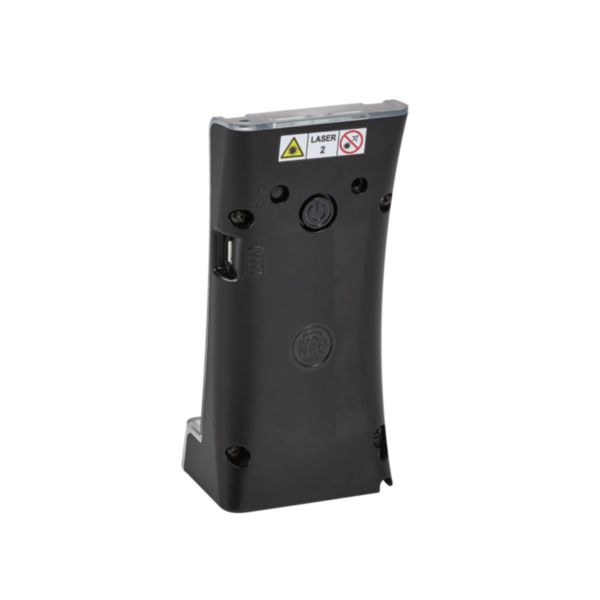

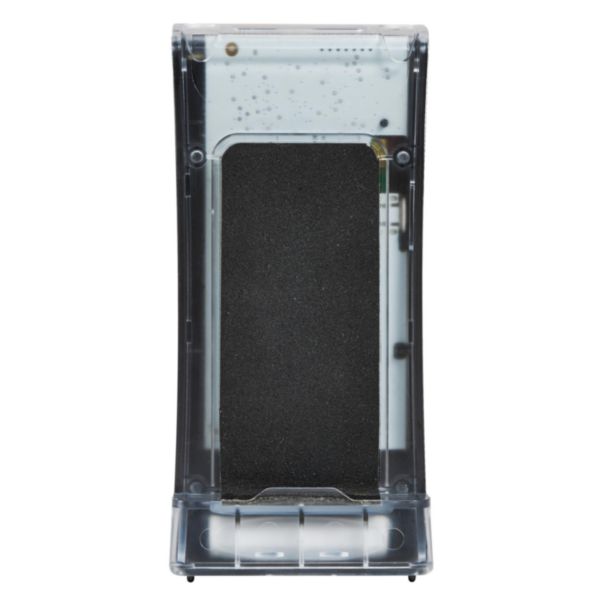

Passerelle de configuration pour paramétrage des hublots, des détecteurs et des blocs d'éclairage de sécurité
Mosaic™
LEGRAND
Passerelle de configuration pour paramétrage des hublots, des détecteurs et des blocs d'éclairage de sécurité
REF. 088240
EAN.
3414971406193
Passerelle de configuration, permet avec l'application Close Up, le paramétrage des hublots, des systèmes de gestion d'éclairage et des blocs d'éclairage de sécurité
Share
Μπορείτε να συγκρίνετε μόνο 4 προϊόντα, πρέπει να αφαιρέσετε 1 για να προσθέσετε αυτό
Τεχνικά χαρακτηριστικά
| With manual transmitter | No |
|---|---|
| Wall-mounted transmitter | No |
| Window transmitter | No |
| Signal transmission | Radio control/infrared |
| Number of channels | 4 |
| Mounting method | Other |
| Material | Plastic |
| Material quality | Thermoplastic |
| Halogen free | Yes |
| Surface protection | Untreated |
| Surface finishing | Matt |
| Colour | Colourless |
| RAL-number (similar) | 9005 |
| Transparent | Yes |
| Range | 65 m |
| Suitable for switch | No |
| Suitable for dimmer | Yes |
| Suitable for venetian shutter switch | No |
| Suitable for indication element | No |
| Suitable for movement sensor | Yes |
| Compatible with Apple HomeKit | No |
| Compatible with Google Assistant | No |
| Compatible with Amazon Alexa | No |
| IFTTT support available | No |
|---|---|
| Width | 63.85 mm |
| Height | 136.8 mm |
| Depth | 44.6 mm |
| degree of impact strength (IK) | IK02 |
| Degree of protection (IP) | IP00 |
| Operating / setting temperature | 0-40 °C |
| Storage temperature | 0-30 °C |
| Voltage type | DC |
| Nominal voltage | 4.8-5.2 V |
| Antimicrobial treatment | No |
| Fitted with USB plug | Yes |
| Contains Batteries and/or Accumulator | Yes |
| Remote opening of gate / Electric door opener | No |
| IEC code (Pack1) | AAA |
| Battery ou Accumulator (Pack1) | Accumulator (rechargeable) |
| Element Composition (Pack1) | Nickel-Metalhydride |
| Number of Pack 1 | 1 |
| Number of Single Element (Pack1) | 3 |
| Single Element weight (Pack1) | 34 g |
| Pack1 Location | Product includes a battery |
| Regulation Type (Pack1) | I : Industrial (not Portable) |
| Connected object | No |
