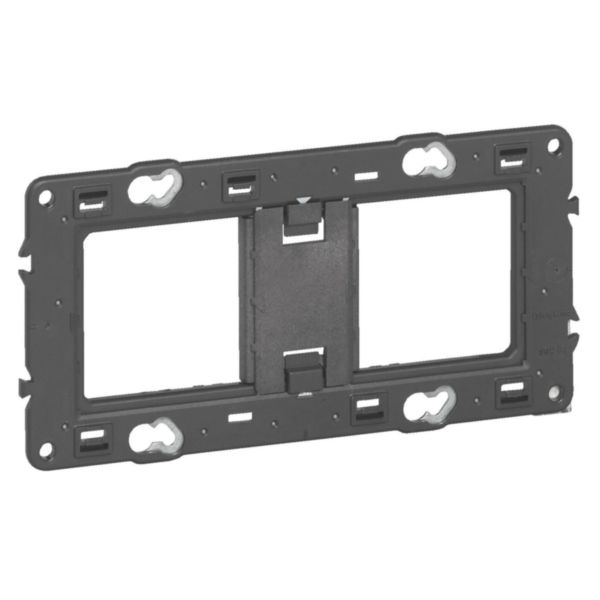

Support à vis pour Mosaic , Céliane ou Soliroc pour 2 postes ou 4 à 5 modules
Mosaic™
LEGRAND
Support à vis pour Mosaic , Céliane ou Soliroc pour 2 postes ou 4 à 5 modules
REF. 080252
EAN.
3245060802523
Batibox, support métallique universel destiné au montage de mécanisme Mosaic, Céliane et Soliroc dans boîte d'encastrement ou cadre saillie
Share
Μπορείτε να συγκρίνετε μόνο 4 προϊόντα, πρέπει να αφαιρέσετε 1 για να προσθέσετε αυτό
Τεχνικά χαρακτηριστικά
| Model | Flush-mounted |
|---|---|
| Mounting method | Mounting with screw |
| With nail | No |
| Depth | 15.7 mm |
| Height | 77 mm |
| Number of modules horizontal (module system) | 5 |
| Number of modules vertical (module system) | 1 |
| With built-in installation box | No |
| With screws | No |
| Width | 145 mm |
| Flush-mounted installation | Yes |
|---|---|
| Suitable for subfloor installation duct box | No |
| Suitable for wall duct | No |
| Mounting direction | Horizontal and vertical |
| Material | Metal |
| Material quality | Other |
| Surface protection | Galvanic/electrolytic zinc plated |
| Suitable for mounting on DIN-rail 35 mm | No |
| Mounting method of the module inserts | Front side |
| Suitable for mounting in round junction box 60 mm | No |
