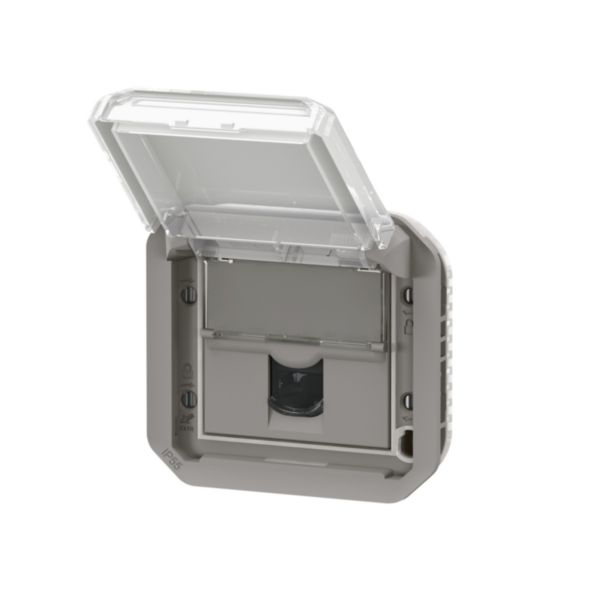

LEGRAND
REF. 069561L
EAN.
3414971878952
Share
Μπορείτε να συγκρίνετε μόνο 4 προϊόντα, πρέπει να αφαιρέσετε 1 για να προσθέσετε αυτό
Τεχνικά χαρακτηριστικά
| Surface mounting | Yes |
|---|---|
| Flush-mounted installation | Yes |
| Duct installation | No |
| Floor box/subfloor mounted | No |
| Type of fastening | Screwing |
| Assembly arrangement | Basic element with central cover plate |
| Type of connector | 2x RJ45 8(8) |
| With buses/couplings | Yes |
| Suitable for number of connectors | 1 |
| Category | 6 |
| Colour | Grey |
| RAL-number | 7046 |
| Connection type | Insulation displacement connector |
| Shielded buses | No |
| Shielded housing | No |
| Separate earthing connection | No |
| With label space | Yes |
| Compatible with third-party covers | No |
| Separate strain relief | No |
| Mounting method shielding connection | None |
|---|---|
| Outlet direction | Straight |
| With dust cover | Yes |
| With terminal resistor | No |
| Degree of protection (IP) | IP55 |
| Mechanical coding | Yes |
| Colour coding | Yes |
| Device width | 70.5 mm |
| Device height | 70.5 mm |
| Device depth | 45 mm |
| Number of modules (module system) | 2 |
| degree of impact strength (IK) | IK08 |
| Operating / setting temperature | -5-35 °C |
| Storage temperature | -25-60 °C |
| Terminal marking indication | Yes |
| Halogen free | Yes |
| Antimicrobial treatment | No |
| Mounting method | Surface mounted/recessed mounted |
| Cable support | Not applicable |
