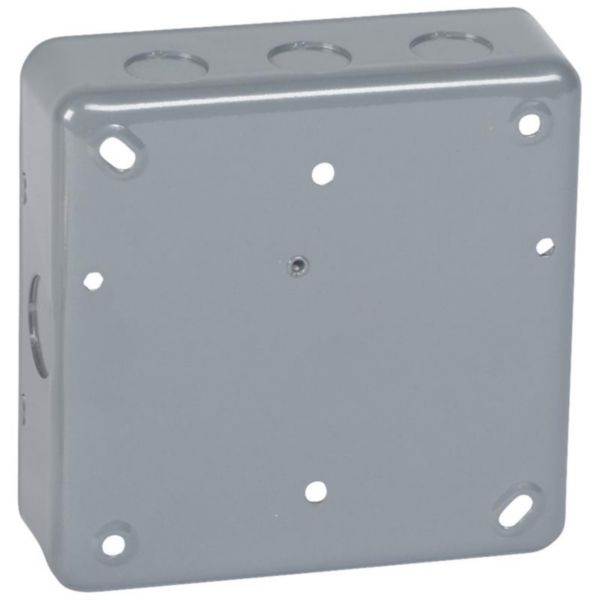

Synergy™
LEGRAND
REF. 081852
EAN.
3245060818524
Share
Μπορείτε να συγκρίνετε μόνο 4 προϊόντα, πρέπει να αφαιρέσετε 1 για να προσθέσετε αυτό
Τεχνικά χαρακτηριστικά
| Mounting method | Facing brickwork |
|---|---|
| Shape | Square |
| Construction type | Other |
| Model | Other |
| Provided with revolving ring | No |
| Equipped with | None |
| Width | 136.9 mm |
| Depth | 43.05-43.35 mm |
| For number of electric fittings | 6 |
| Mounting switching equipment | Screwing |
| With screws | No |
| Housing feed-through by break-out opening | Yes |
| Housing feed-through by seal membrane | No |
| Housing feed-through by nozzle | No |
| Housing feed-through by step membrane | No |
| For tube diameter | 20/25 mm |
| Pipe locking | No |
| Pipe locking optional | No |
| Inlet from the rear | No |
| Number of inlets | 8 |
|---|---|
| Material | Steel |
| Halogen free | Yes |
| Surface protection | Other |
| Colour | Grey |
| Degree of protection (IP) | IP20 |
| Cover model | None |
| Cover attachment | Other |
| Sealable | No |
| With screening | No |
| Air tight | No |
| Number of poles of the clamp | 2 |
| Clamp position fixed | Yes |
| Luminaire hook mounting | No |
| Nozzle | None |
| Special application | None |
| Vertical fixing center distance | 98.6-111.4 mm |
| Horizontal fixing center distance | 98.6-111.4 mm |
| Cable support | Not applicable |
