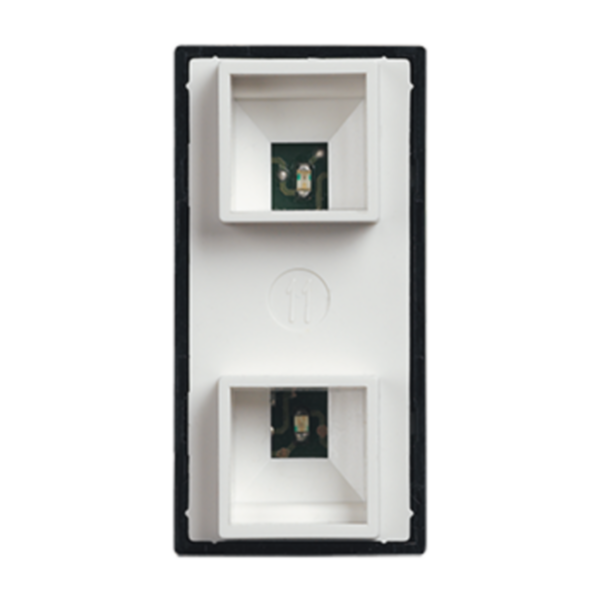

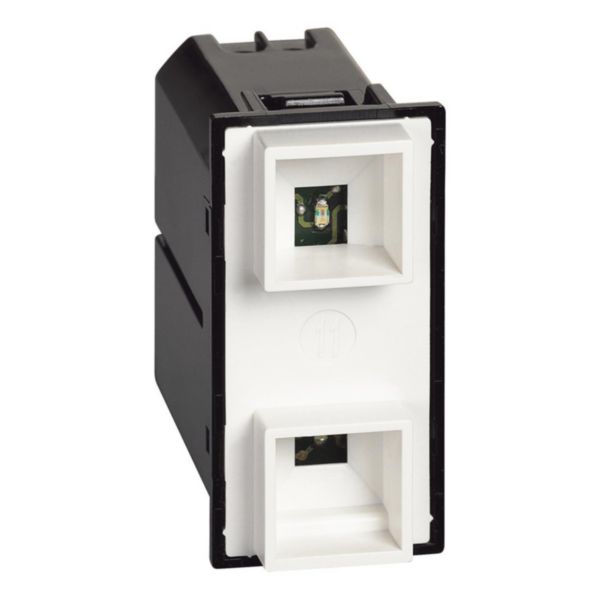

Indicateur de signal extérieur de chambre d'hôtel Living Now avec voyant vert et rouge - 1 module
Living Now
BTICINO
Indicateur de signal extérieur de chambre d'hôtel Living Now avec voyant vert et rouge - 1 module
REF. BT-K4373
EAN.
8005543618554
Living Now, signal visuel luminueux à installer à l’extérieur de la chambre pouvant indiquer « Ne pas déranger » et « Faire la chambre », avec deux LED intégrées (verte et rouge)
Share
Μπορείτε να συγκρίνετε μόνο 4 προϊόντα, πρέπει να αφαιρέσετε 1 για να προσθέσετε αυτό
Τεχνικά χαρακτηριστικά
| Assembly arrangement | Basic element |
|---|---|
| Number of modules (module system) | 1 |
| Lamp holder | None |
| With light source | Yes |
| Lamp type | LED not exchangeable |
| With flashlight | No |
| With fixed symbol/imprint | No |
| With exchangeable symbol | No |
| Application as button | No |
| Mounting method | Flush-mounted |
| Type of fastening | Engage (snap) |
| Material | Plastic |
| Material quality | Thermoplastic |
| Halogen free | Yes |
| Surface protection | Untreated |
| Surface finishing | Matt |
| Colour | Black |
| RAL-number (similar) | 7015 |
| Transparent | No |
| Colour light source | Red/green |
| Suitable for degree of protection (IP) | IP40 |
|---|---|
| Nominal voltage | 230 V |
| Max. lamp power | 5 W |
| Device width | 22 mm |
| Device height | 45 mm |
| Device depth | 41.5 mm |
| Min. depth of built-in installation box | 40 mm |
| Built-in depth | 34 mm |
| degree of impact strength (IK) | IK04 |
| Operating / setting temperature | -5-35 °C |
| Storage temperature | -10-70 °C |
| Voltage type | AC |
| Frequency | 50-60 Hz |
| Mandatory neutral | Yes |
| Terminal marking indication | No |
| Antimicrobial treatment | No |
| Connection type | Screwed terminal |
| Cable nature for connection | Flexible |
| Cable section | 1.5-2.5 mm² |
| Label space/information surface | No |
