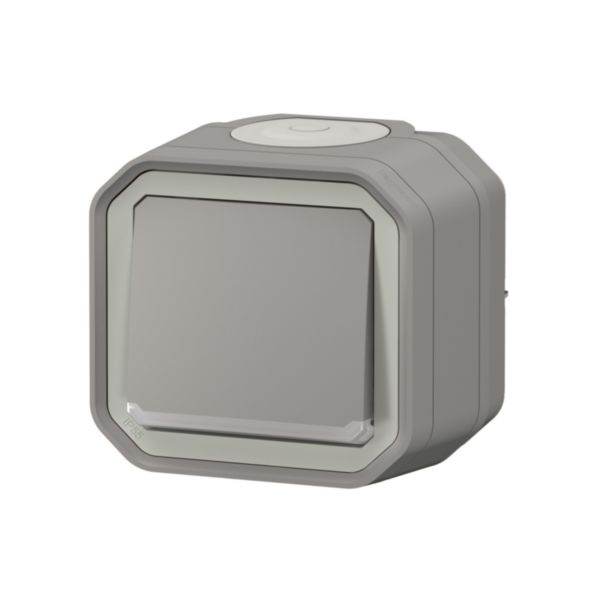

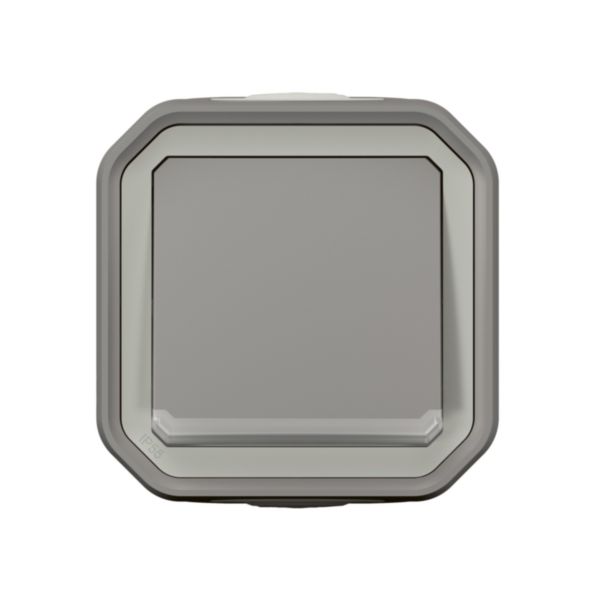

Interrupteur ou va-et-vient témoin avec voyant étanche Plexo 10AX 250V~ IP55 IK08 livré complet fixation saillie - gris
Plexo™
LEGRAND
Interrupteur ou va-et-vient témoin avec voyant étanche Plexo 10AX 250V~ IP55 IK08 livré complet fixation saillie - gris
REF. 069712L
EAN.
3414971881808
Plexo complet saillie, une commande d'éclairage étanche idéale pour les lieux humides
Share
Μπορείτε να συγκρίνετε μόνο 4 προϊόντα, πρέπει να αφαιρέσετε 1 για να προσθέσετε αυτό
Τεχνικά χαρακτηριστικά
| Wiring system | Two-way switch |
|---|---|
| Method of operation | Rocker/button |
| Assembly arrangement | Basic element with complete housing |
| Push button switch | No |
| Number of rockers | 1 |
| Mounting method | Surface mounted |
| With mounting plate | No |
| Material | Plastic |
| Material quality | Thermoplastic |
| Halogen free | Yes |
| Antimicrobial treatment | No |
| Surface protection | Untreated |
| Surface finishing | Matt |
| Colour | Grey |
| RAL-number (similar) | 7046 |
| Colour of switch operator | Grey |
| Label space/information surface | No |
| Lighting | Yes |
| Function lighting | Illuminated (on) |
| Type of lighting | LED exchangeable |
| Suitable for degree of protection (IP) | IP55 |
| degree of impact strength (IK) | IK08 |
| Nominal voltage | 250 V |
| Rated current | 10 A |
|---|---|
| Switching current for fluorescent lamps | 10 AX |
| Monitoring contact | No |
| Connection type | Push-in clamp |
| Heating switch | No |
| Washing machine switch | No |
| Device width | 82 mm |
| Device height | 85 mm |
| Device depth | 61 mm |
| Compatible with Apple HomeKit | No |
| Compatible with Google Assistant | No |
| Compatible with Amazon Alexa | No |
| IFTTT support available | No |
| Operating / setting temperature | -10-40 °C |
| Storage temperature | -25-60 °C |
| Voltage type | AC |
| Frequency | 50-60 Hz |
| Terminal marking indication | Yes |
| Terminals capacity | 1.5-2.5 mm² |
| Cable nature for connection | Flexible or rigid |
| Cable section | 1.5-2.5 mm² |
| Tube diameter for wall mounted product | 16-25 mm |
3 documents
Navodila za uporabo
Tehnični list
Tehnični list
1 document
Stran v katalogu
3 documents
3D Autocad
BIM datoteka
BIM datoteka
6 documents
Pogodba
KSC-JW02001-24001
(2.46 Mo)
Pogodba
VDE-40057978
(1.18 Mo)
Pogodba
AENOR-030/002620
(0.87 Mo)
Pogodba
NF App Domestic-NF012_3294/A2
(0.74 Mo)
Pogodba
SNI-824 220294
(0.67 Mo)
Pogodba
OC / CB-FR_715726
(0.74 Mo)
