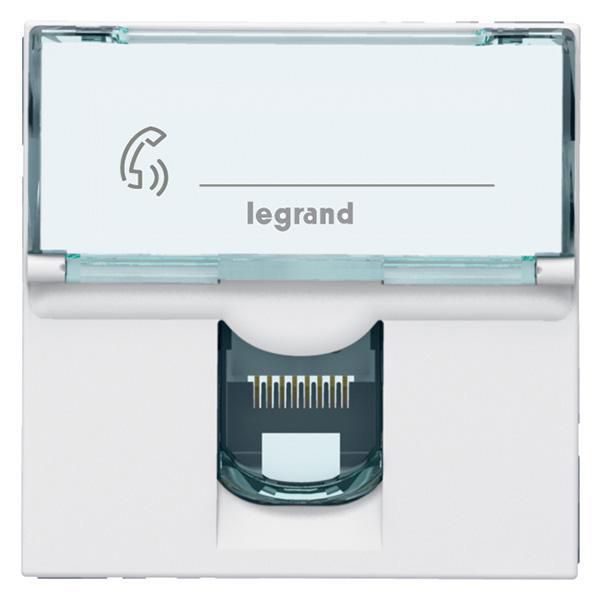

Prise RJ 12 Mosaic 6 contacts 2 modules - blanc
Mosaic™
LEGRAND
Prise RJ 12 Mosaic 6 contacts 2 modules - blanc
REF. 078732
EAN.
3245060787325
Mosaic, une prise téléphone répondant aux tendances actuelles des bâtiments à compléter d'une plaque de finition et d'un support et à poser sur tous types de supports
Share
Μπορείτε να συγκρίνετε μόνο 4 προϊόντα, πρέπει να αφαιρέσετε 1 για να προσθέσετε αυτό
Τεχνικά χαρακτηριστικά
| Surface mounting | No |
|---|---|
| Duct installation | Yes |
| Floor box/subfloor mounted | Yes |
| Type of fastening | Engage (snap) |
| Assembly arrangement | Modular device for domestic switching devices |
| Type of connector | Other |
| Category | 3 |
| Connection type | Other |
| Shielded housing | No |
| Separate earthing connection | Yes |
| With label space | Yes |
| Separate strain relief | No |
| Mounting method shielding connection | None |
| Outlet direction | Straight |
|---|---|
| With dust cover | Yes |
| Degree of protection (IP) | IP20 |
| Mechanical coding | No |
| Colour coding | No |
| Device width | 45 mm |
| Device height | 45 mm |
| Built-in depth | 40 mm |
| degree of impact strength (IK) | IK04 |
| Operating / setting temperature | -5-35 °C |
| Storage temperature | -10-70 °C |
| Halogen free | Yes |
| Antimicrobial treatment | No |
