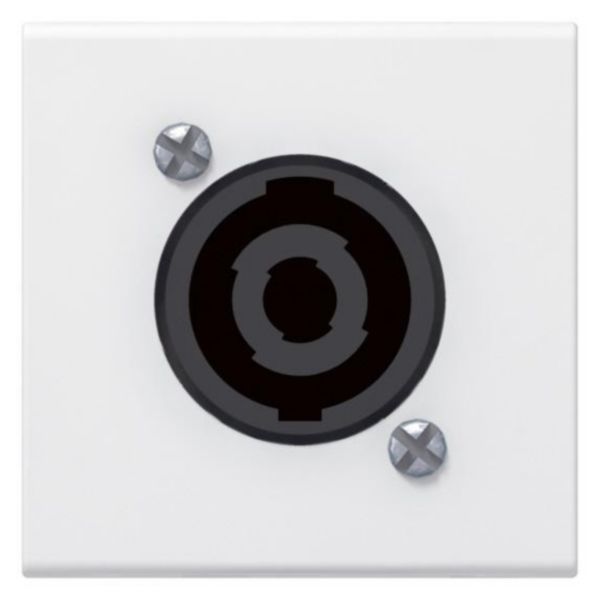

Prise Speakon 4 contacts Mosaic 2 modules pour le branchement d'enceintes de puissance - blanc
Mosaic™
LEGRAND
Prise Speakon 4 contacts Mosaic 2 modules pour le branchement d'enceintes de puissance - blanc
REF. 078760
EAN.
3245060787608
Mosaic, une prise Speakon, répondant aux tendances actuelles des bâtiments à compléter d'une plaque de finition et à poser sur tous types de supports
Share
Μπορείτε να συγκρίνετε μόνο 4 προϊόντα, πρέπει να αφαιρέσετε 1 για να προσθέσετε αυτό
Τεχνικά χαρακτηριστικά
| Assembly arrangement | Basic element with central cover plate |
|---|---|
| Utilization | XLR |
| Support ring | No |
| With dust cover | No |
| With hinged lid | No |
| Outlet direction | Straight |
| Imprintable label | Without indication field |
| With imprint | No |
| Mounting method | Flush-mounted |
| Material | Plastic |
| Material quality | Thermoplastic |
| Halogen free | Yes |
| Antimicrobial treatment | No |
| Surface finishing | Matt |
| Colour | White |
| Transparent | No |
|---|---|
| Type of fastening | Engage (snap) |
| Number of modules (module system) | 2 |
| Suitable for number of connectors | 1 |
| With strain relief | No |
| Shielded buses | No |
| Shielded housing | No |
| Luster terminal | No |
| Suitable for degree of protection (IP) | IP41 |
| degree of impact strength (IK) | IK04 |
| Device width | 45 mm |
| Device height | 45 mm |
| Built-in depth | 28 mm |
| Operating / setting temperature | -5-50 °C |
| Storage temperature | -10-70 °C |
